Crane features

  • Lifting capacity of 35 Tonnes (DEKRA Certificate on Cranes)
  • Handling Capacities of 1 x 20’ / 1 x 40’ / 2 x 20’ container (includes container links for 2 x 20’ lifting)
  • High tensile steel (Weldox) – Grade QST 690
  • Stabiliser support legs with hydraulic positioning
  • Front and Rear crane can work simultaneously or independently
  • SafeBox® Electronic Stability System Operations through CanBus technology (prevents unsafe operations)
  • Electronic Display of Weight on Screen (Note: Mutliloader & Step Over only)

Trailer Features

  • O’PHEE Unique ‘Lightweight’ High tensile steel frame with integral bracing
  • ADR compliant full fabricated Rear end, ‘bolt-on’ for easy removable in case of repair
  • Drivers side chassis ‘completely’ clean, no ancillary equipment, NIL possible damage areas
  • Stainless Steel Toolbox mounted on Left Hand Side
  • Single Tyre carrier with Left Hand Side feed
  • Jost 2 Speed Module with Rocker Feet
  • Exclusion Zone 4 x Orange witches hats & carrier on RH Side
  • Reverse spot lights & reverse beeper alarm
  • Dangerous Goods (Flameproof) lighting
  • Power Pack – Perkins Type 404D-22T (2 year warranty)

Step Over Features

‘STEP OVER’ Stablilsers with hydraulic positioning
Making loading companion trailers efficiently and easy

  • 35t (DEKRA Certificate on cranes)
  • RHS loading
  • Both front and rear crane ‘’STEP OVER’’ modules can be used in the ‘’KNEELING’ position to facilitate trailer to trailer transfer
  • Chassis design constructed with 800 grade quenched and tempered steel
  • Low tare weight to increase payloads.
  • Double stack containers
  • Wireless remote control operated leg
  • 3-Way Container pins
  • Centralised greasing system
  • Safebox, electronic stability system through CanBus
  • Quickest operating speed on the market

Speedloader Features

  • Designed for ‘Trailer to Ground’ & ‘Ground to Trailer’ transfers only
  • Stabiliser fixed legs hit the ground in a pre-set precise position
  • Quick speed of operation – fast & efficient
  • Simplicity of operation
  • Low tare weight.

Multi Loader Features

  • Designed for ‘Trailer to Trailer’ & ‘Trailer to Ground’ transfers
  • Option of choosing the ‘Single’ or ‘Double’ extension legs
  • Single legs offer lighter tare weight & quicker operation
  • Double legs offer greater reach giving better stability
  • Hi-Tensile Steel Frame
  • Popular Crane choice

Drake Group

Box movements
made easy

Excellent
stability

Drake Group

Prevents dangerous
operations

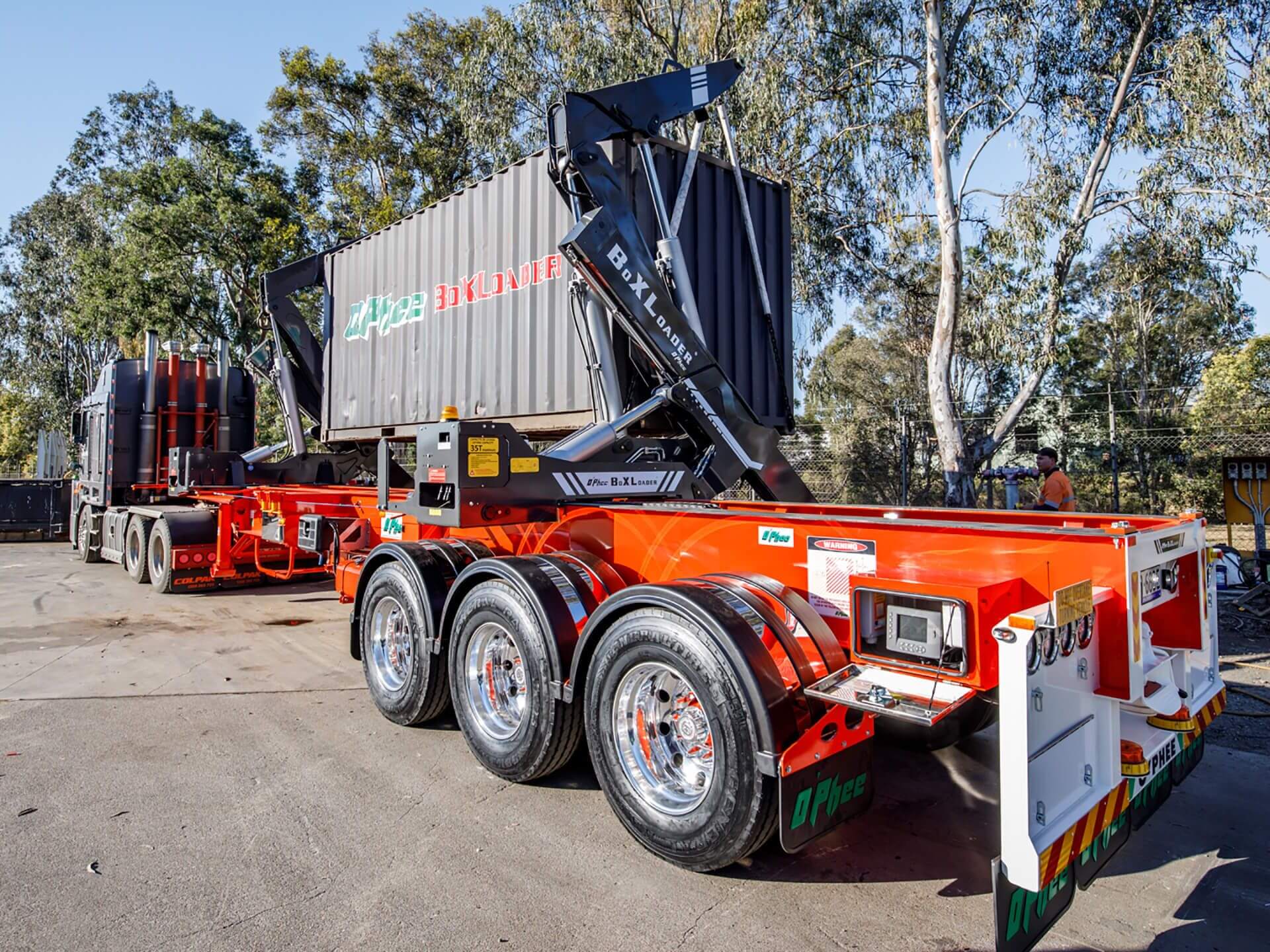

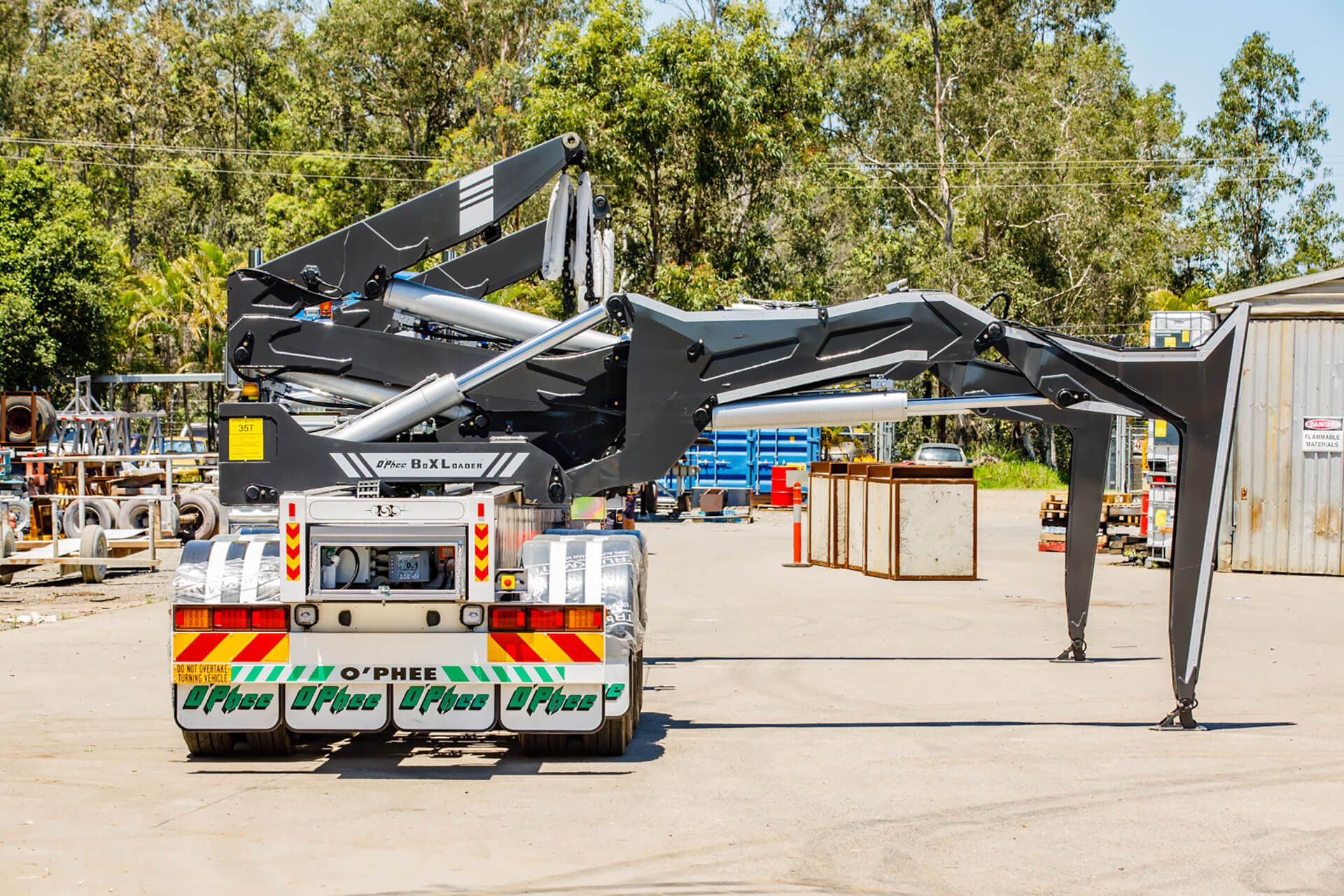

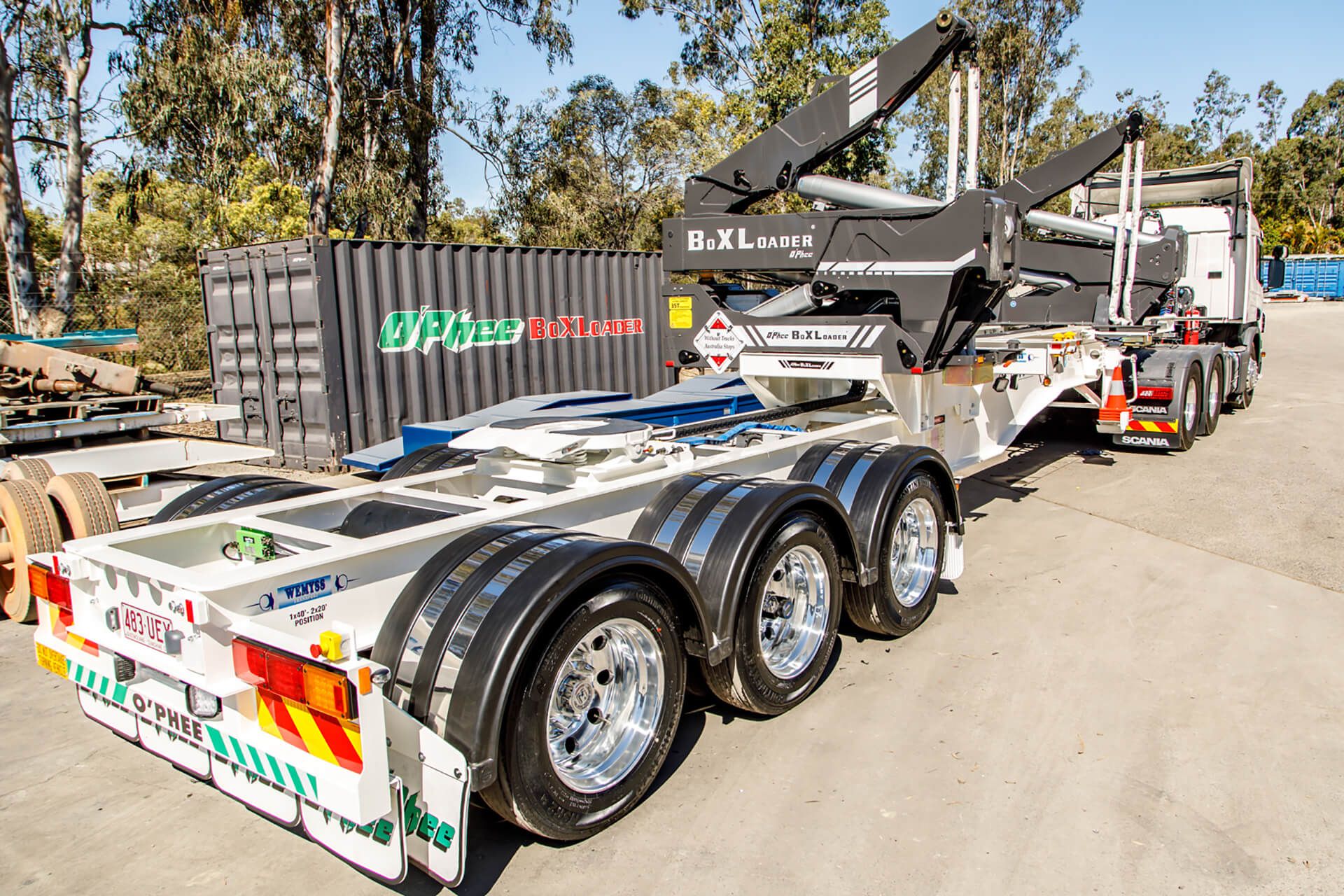

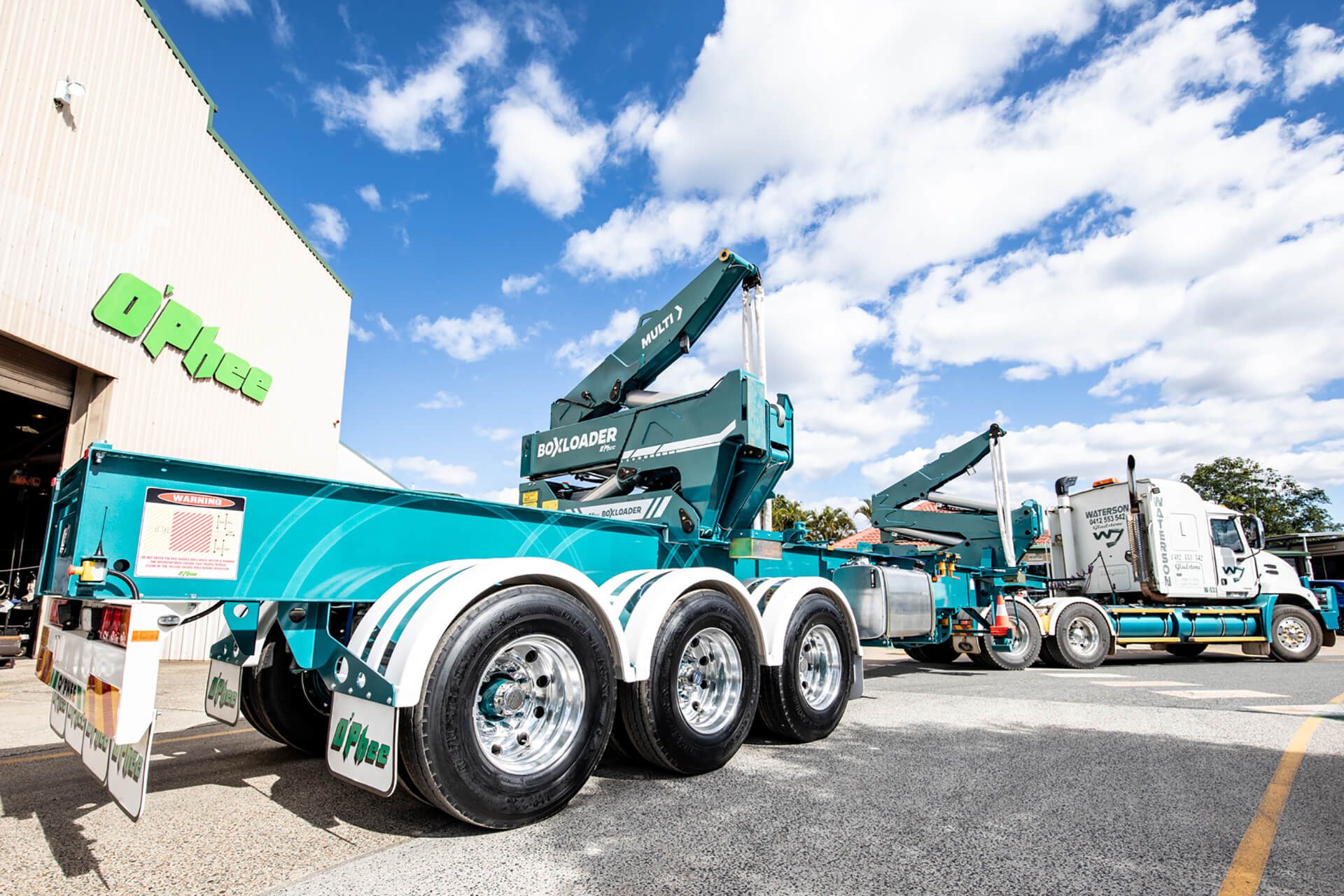

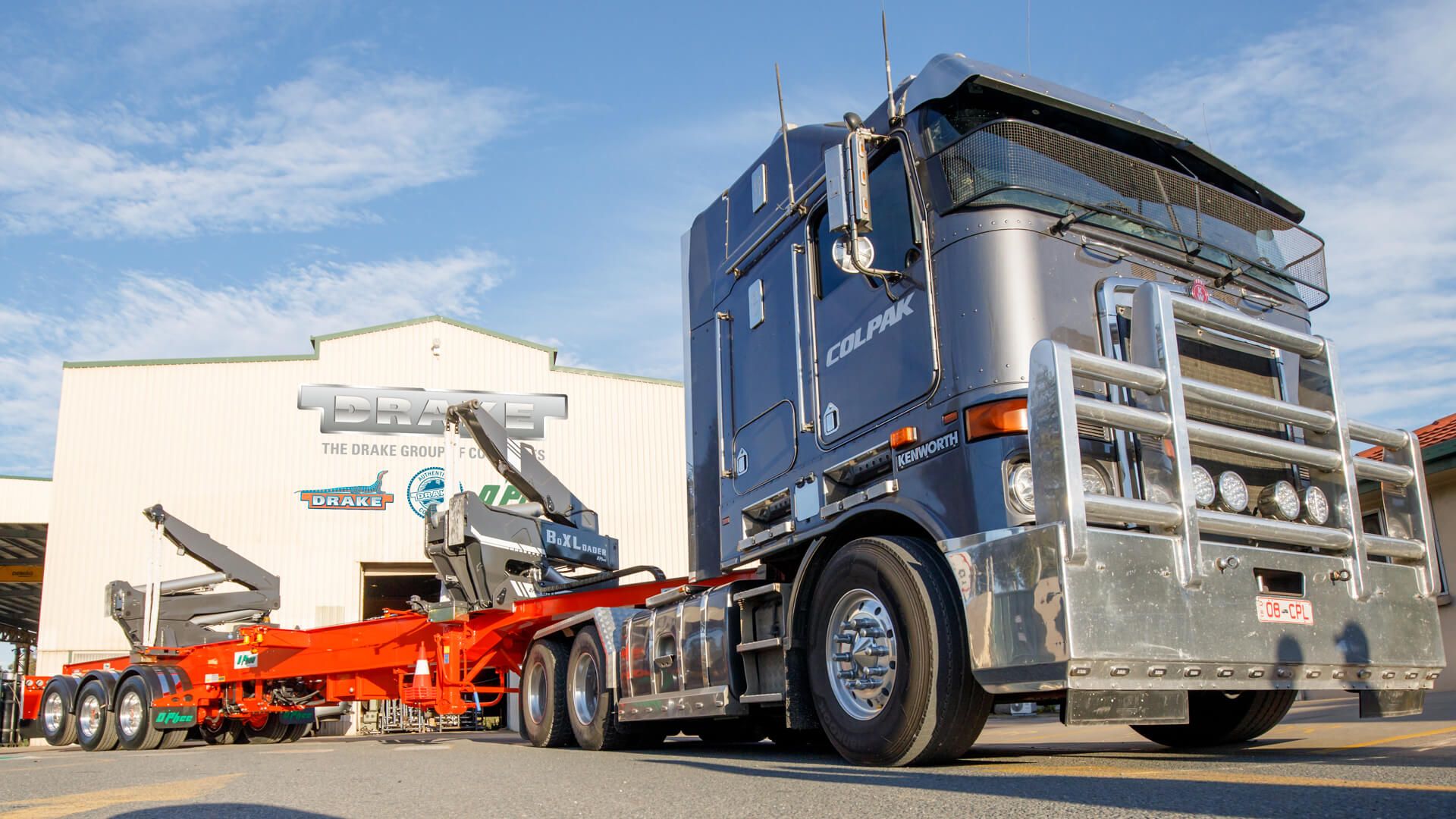

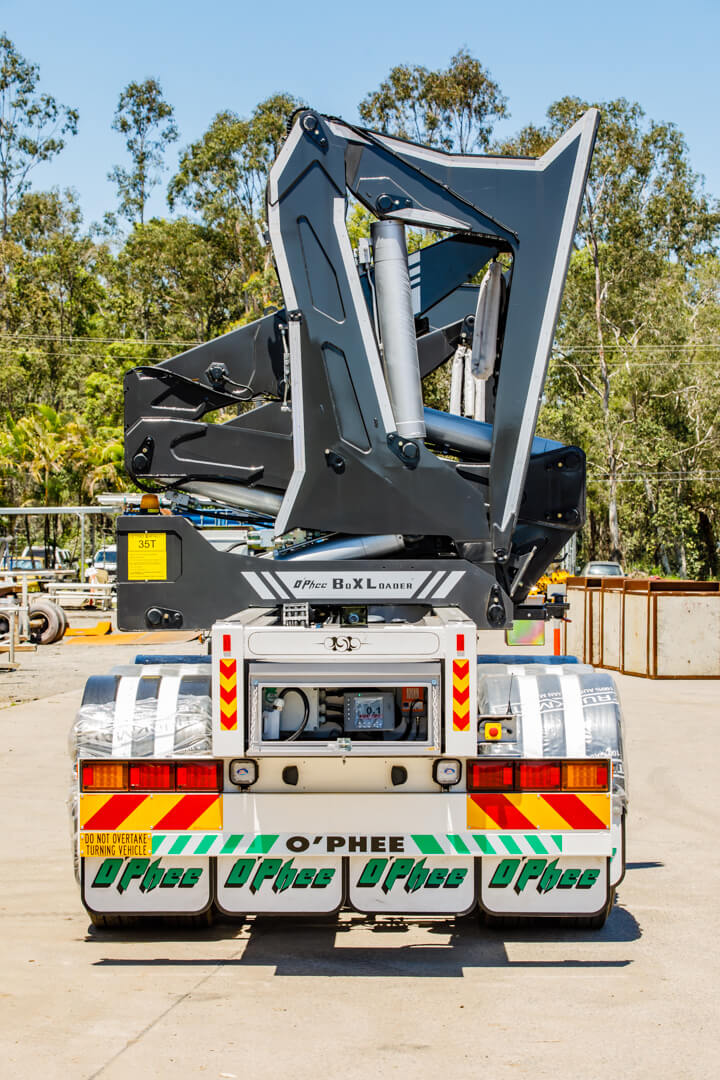

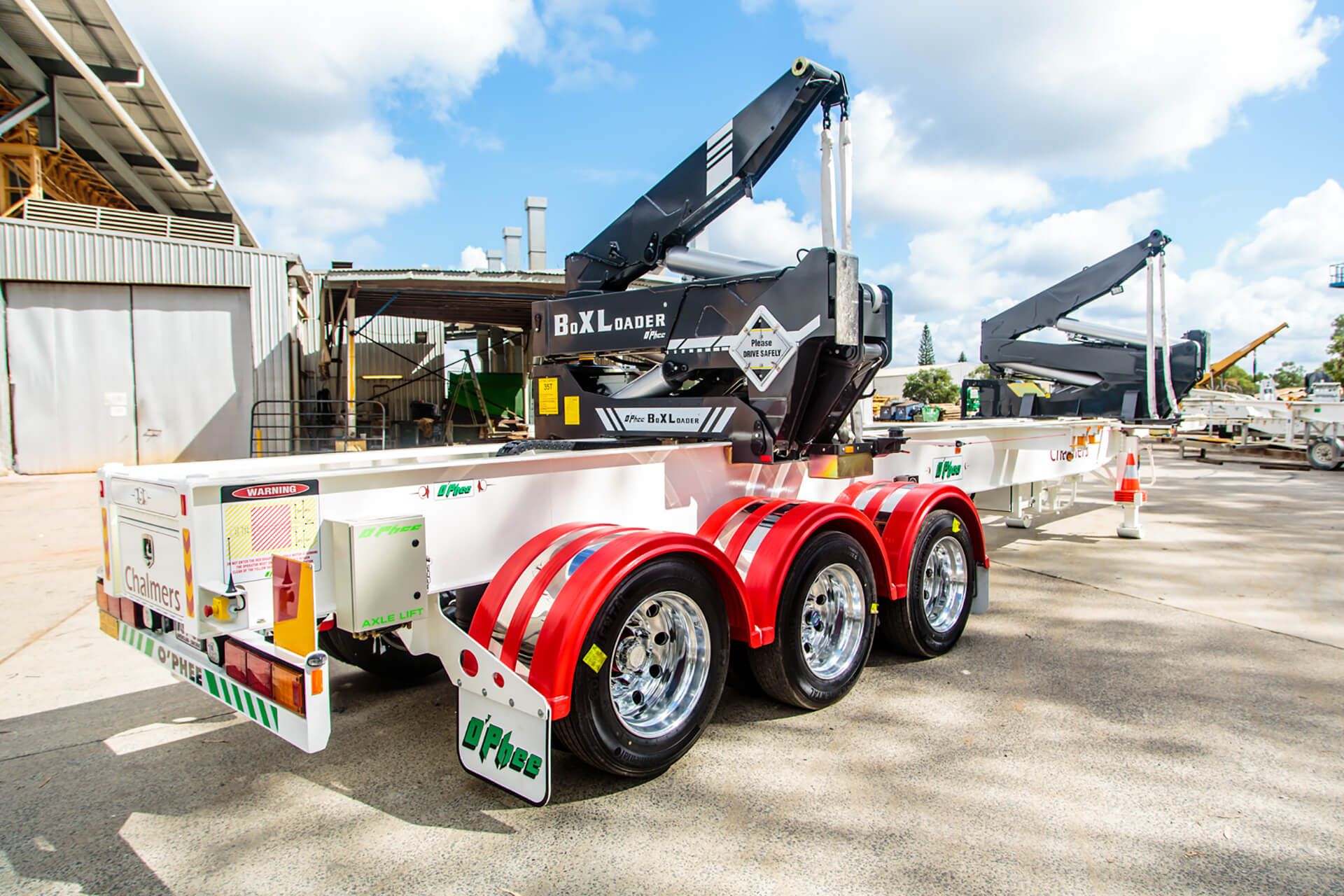

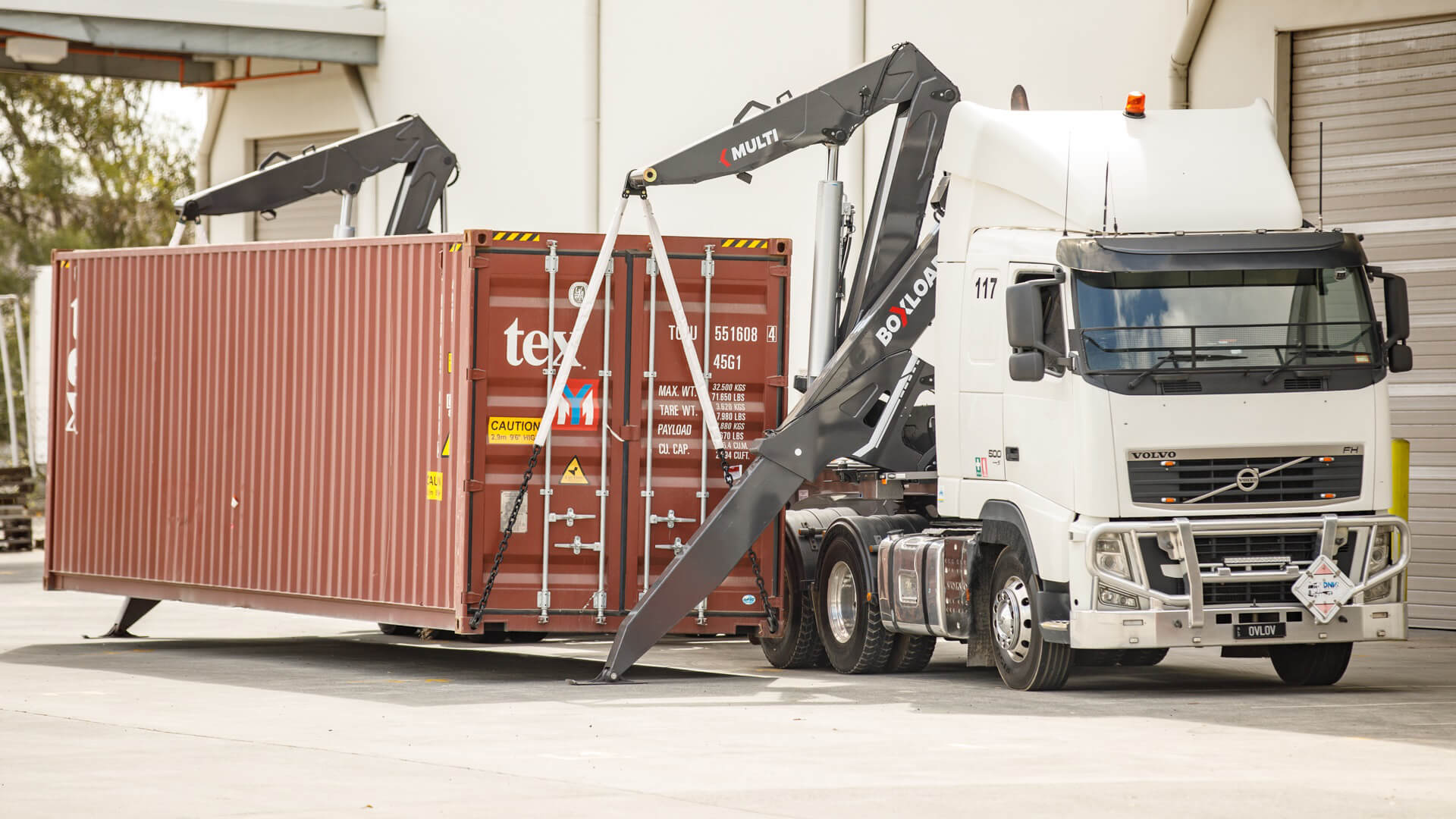

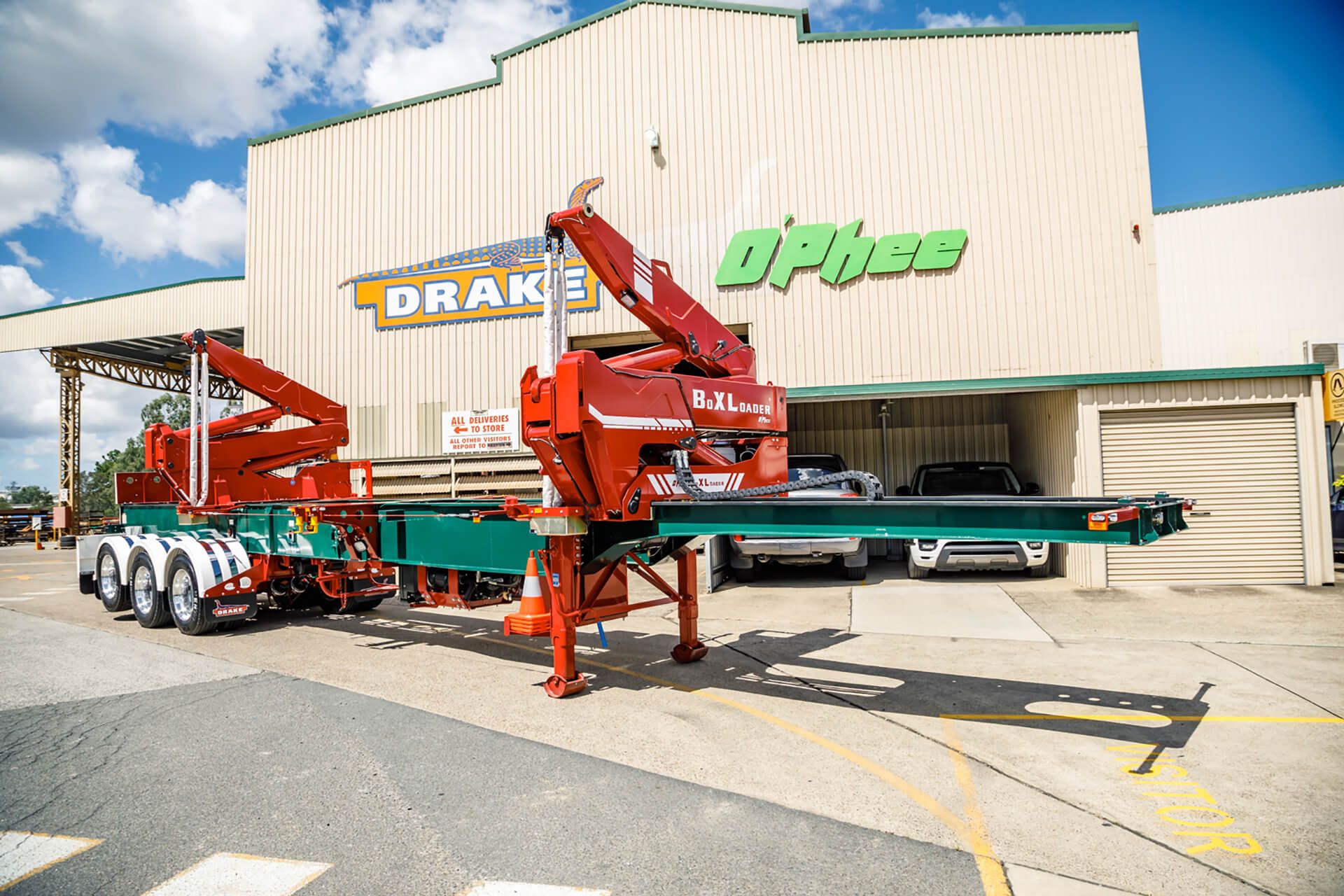

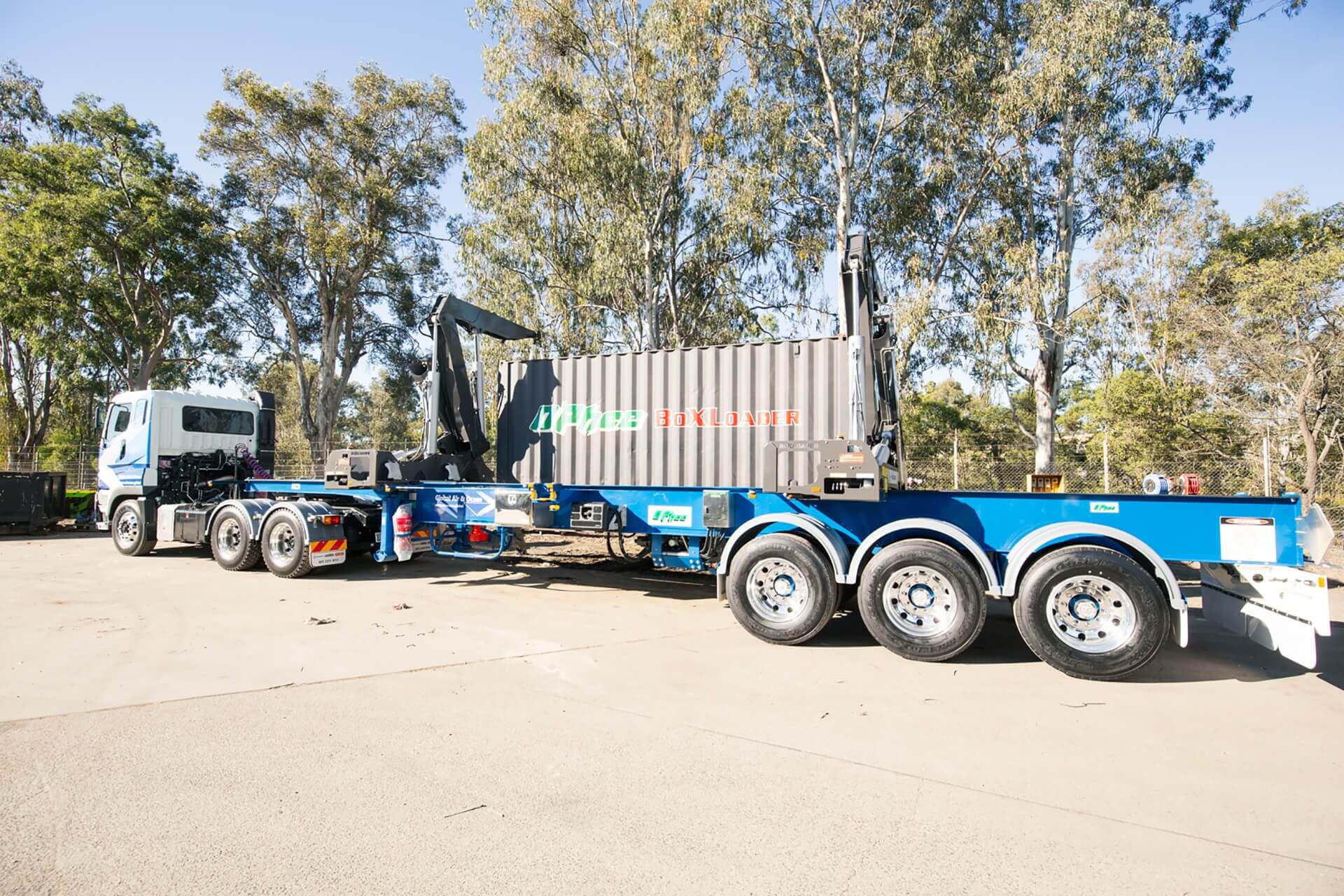

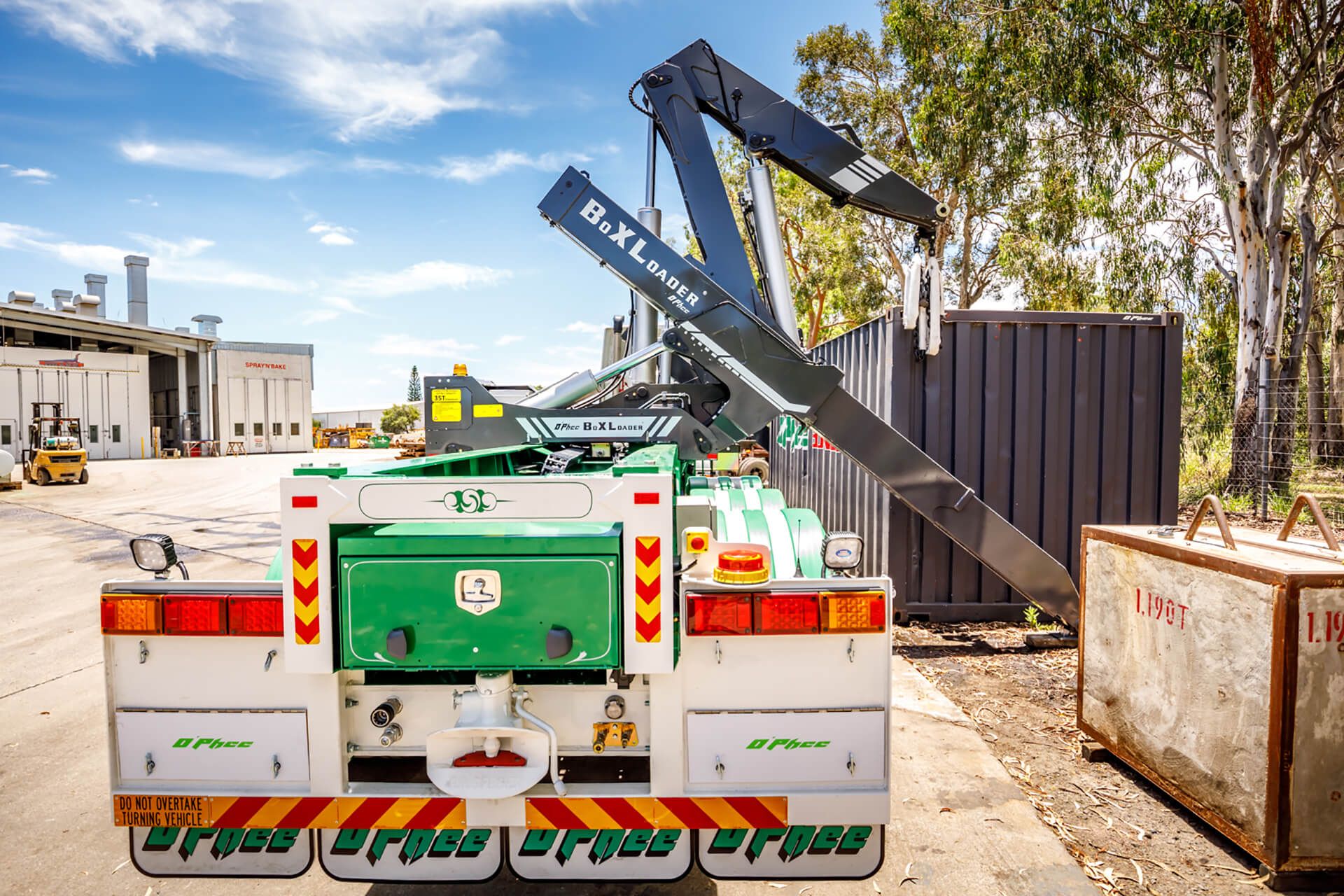

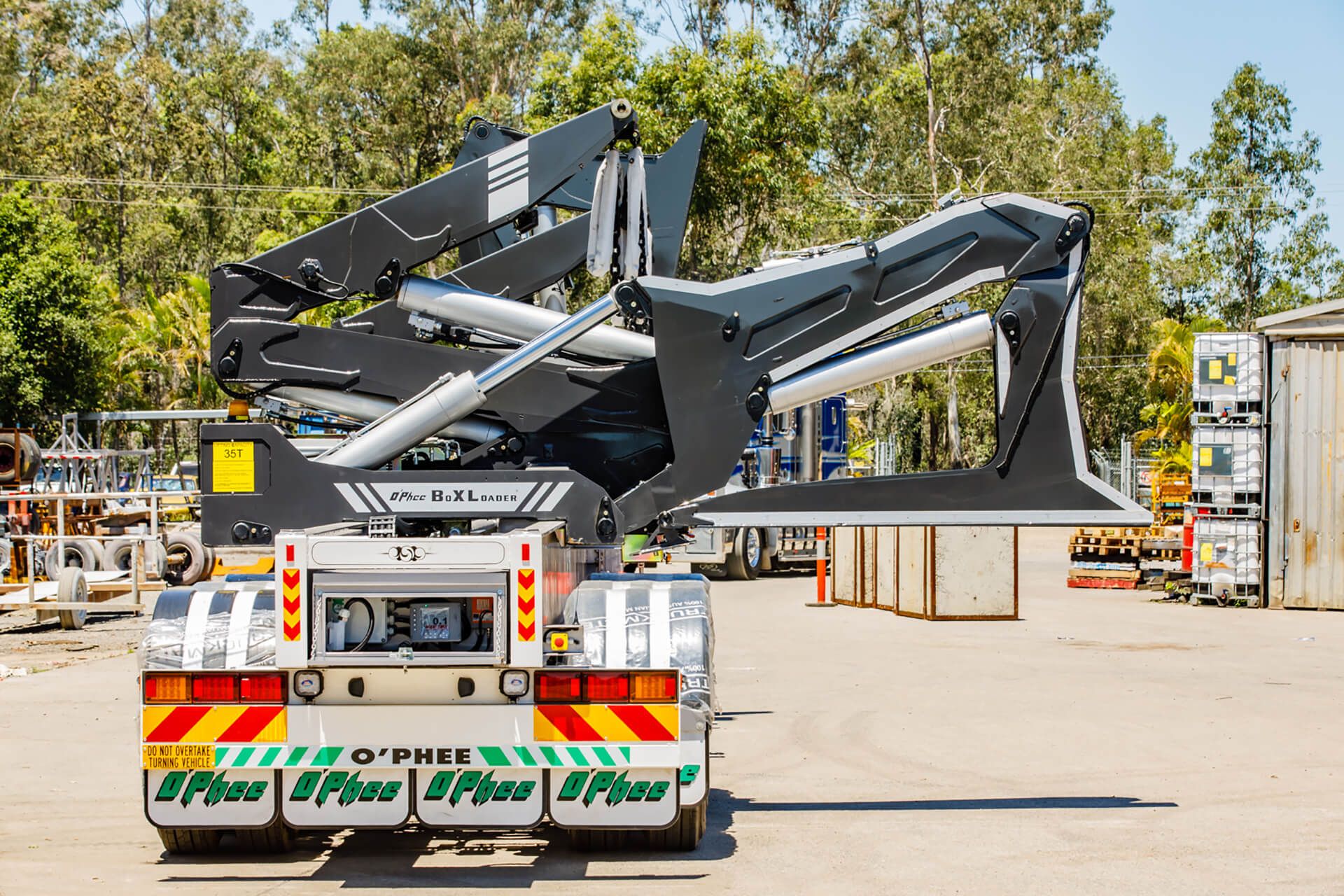

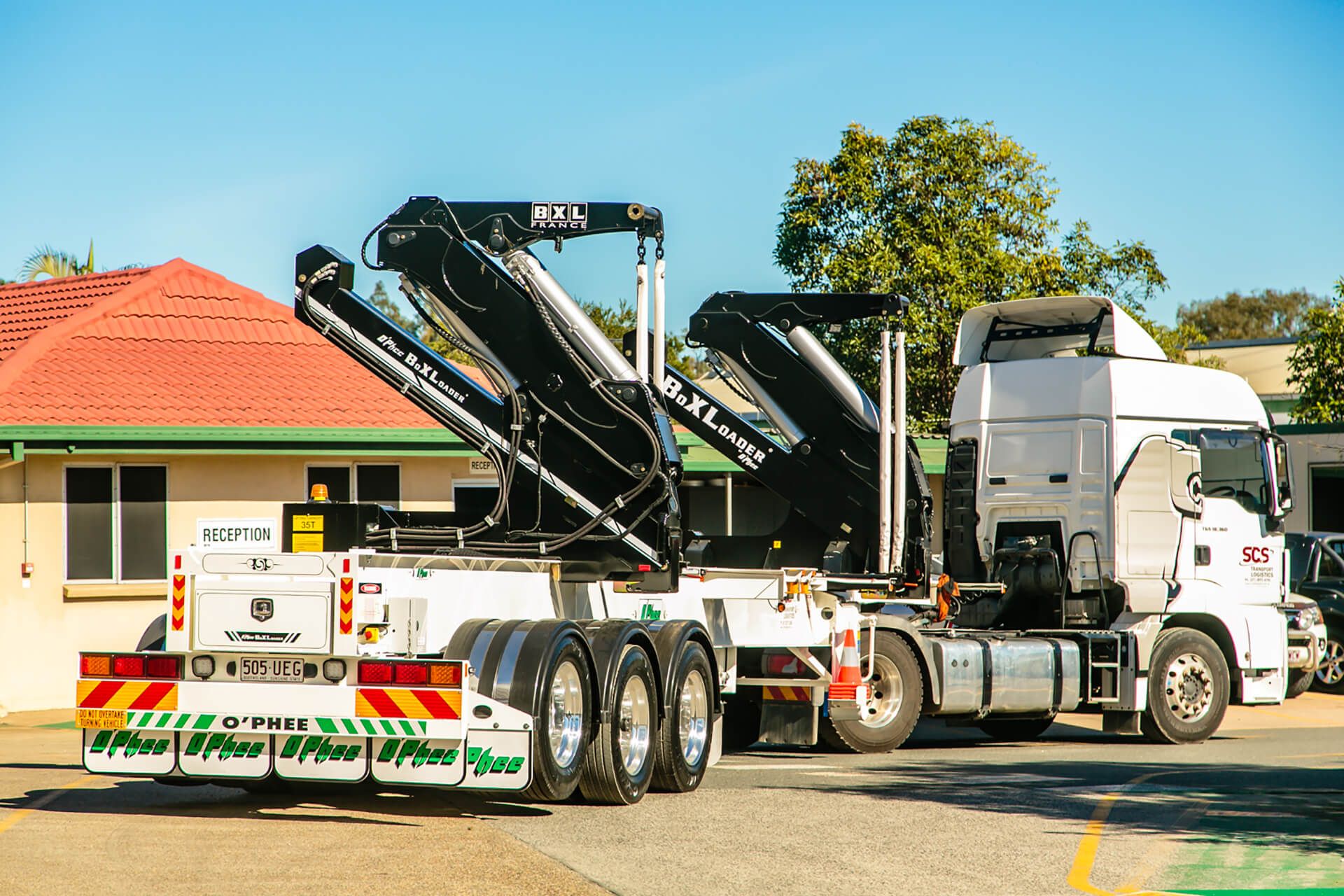

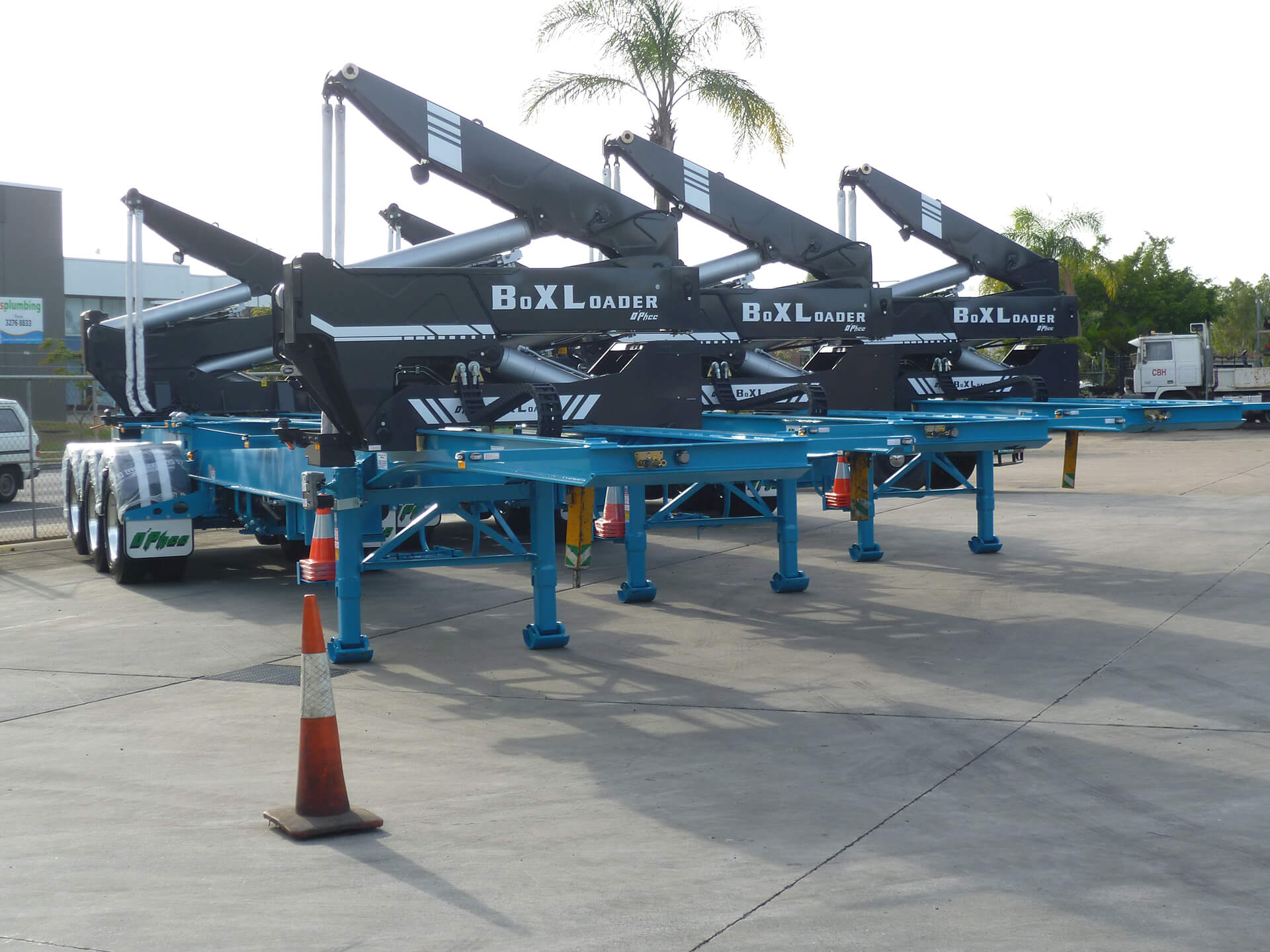

BoXLoader Gallery
